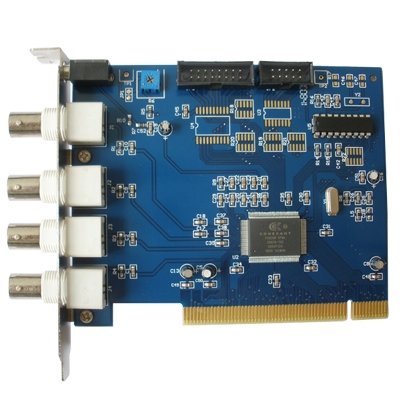

Brand New Retail Boxed 4 Channel DVR Card with 4 BNC adaptors
For all your CCTV surveillance needs (4 Video channels & 1 Audio channel)
Not Compatible with Microsoft Vista
Simply slot the card into an empty PCI slot on your PC and load the software provided then plug your 1 to 4 cameras directly into the card or the 1 to 4 receivers if you have a wireless surveillance system using the BNC Adaptors provided
This will enable to control up to 4 cameras at once (simultaneously in a QUAD View on the screen)
The DVR CARD allows you to set your cameras individually or altogether to record at any particular times you wish or record when your camera detects motion. Each camera can be set to it's own time schedule and the video footage can be backed up to an external hard drive
MPEG-4 data processing allows you to record continuously for weeks using little space on the PC
1 camera could record continuously for two months and only use 20gb
Specification
Resolution 760x576 (PAL) 1-Channel in 1 card or 4-Channel in 1 card
Resource occupancy at 120-150M/H per channel (inc audio)
Audio / Video Recording & Playback
Multi recording mode time schedules recording, real-time recording and alarm recording
Recording frame rate per channel adjustable (1/60F/S-25F/S)
Alarm recording auto-turn into real-time recording mode once alarm recording triggers
Able to save recording data into local hard disk
Able to perform selective playback modes according to recording time, such as different speed playback, fast forward/fast reverse
Able to capture single frame image for printing or electronic zoom in
System Requirement
Display Card: Geforce 4 or ATI R70000 64M or more
Memory:256M or more
HDD:80G 7200/s
CPU: PIII 800MHz or more
Operate System: Windows 2000 to Windows XP
Display model:1024*768 32bit
Install Directx 8.0 or more advanced
